ESP8266 FIRMWARE UPDATE USING ARDUINO
Nov 14, 2019
This video walks you through the process of updating the firmware of the ESP8266 WiFi module using an Arduino UNO.
Components Required
- 1 x ESP8266 WiFi Module
- 1 x Arduino UNO
- Jumper Wires (Female-Female)
- Jumper Wires (Female-Male)
- 1 x Breadboard
Pin Connections
| ARDUINO PINS | ESP8266 PINS |
|---|---|
| TX | TX |
| RX | RX |
| +3.3V | VCC |
| +3.3V | CH_EN |
| GND | GND |
| GND | GPIO_0 |

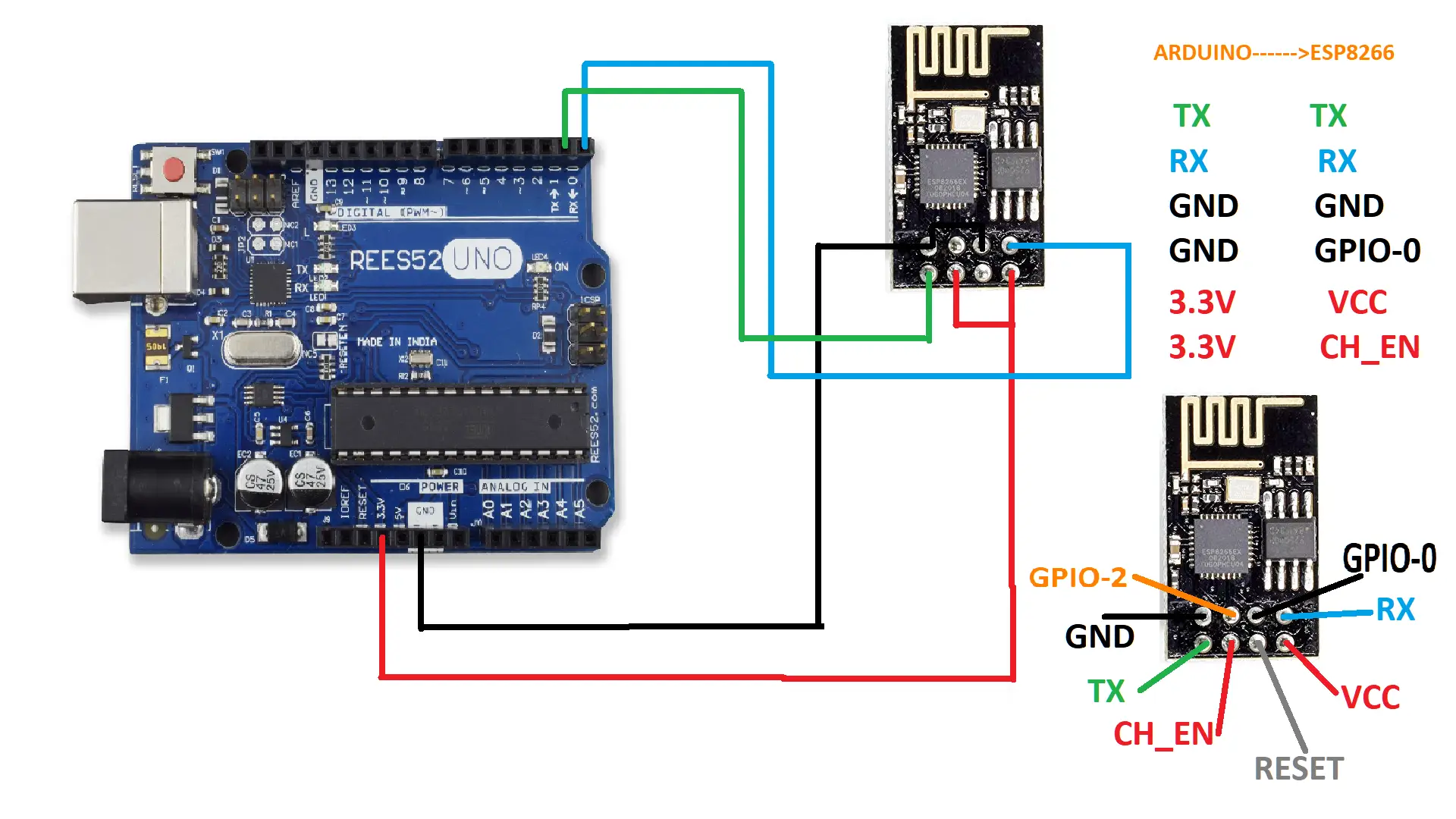

Circuit Diagram
Link to the Flasher and firmware : CLICK HERE
If you like this video hit the SUBSCRIBE button and give a LIKE.
